Tree Traversals

The tree traversal is the process of visiting every node exactly once in a tree structure for some purposes(like getting information or updating information). In a binary tree there are some described order to travel, these are specific for binary trees but they may be generalized to other trees and even graphs as well.

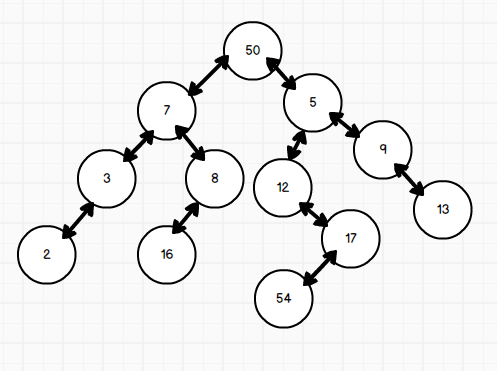

a binary tree
a binary tree

Preorder Traversal

Preorder means that a root will be evaluated before its children. In other words the order of evaluation is: Root-Left-Right

1
2
3
4
Preorder Traversal
    Look Data
    Traverse the left node
    Traverse the right node

Example: 50 – 7 – 3 – 2 – 8 – 16 – 5 – 12 – 17 – 54 – 9 – 13

Inorder Traversal

Inorder means that the left child (and all of the left child’s children) will be evaluated before the root and before the right child and its children. Left-Root-Right (by the way, in binary search tree inorder retrieves data in sorted order)

1
2
3
4
Inorder Traversal
    Traverse the left node
    Look Data
    Traverse the right node

Example: 2 – 3 – 7 – 16 – 8 – 50 – 12 – 54 – 17 – 5 – 9 – 13

Postorder Traversal

Postorder is the opposite of preorder, all children are evaluated before their root: Left-Right-Root

1
2
3
4
Postorder Traversal
    Traverse the left node
    Traverse the right node
    Look Data

Example: 2 – 3 – 16 – 8 – 7 – 54 – 17 – 12 – 13 – 9 – 5 – 50

Implementation

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
class Node:
    def __init__(self,key):
        self.left = None
        self.right = None
        self.val = key

def printInorder(root):
    if root:
        printInorder(root.left)
        print(root.val)
        printInorder(root.right)

def printPostorder(root):
    if root:
        printPostorder(root.left)
        printPostorder(root.right)
        print(root.val)

def printPreorder(root):
    if root:
        print(root.val)
        printPreorder(root.left)
        printPreorder(root.right)
